INDUSTRIAL TURNING

The diverse EMCO turning machine series offer professional solutions for every demand.

UNIVERSAL TURN

More performance. More precision. More future. The new benchmark in universal turning.

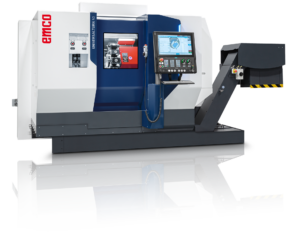

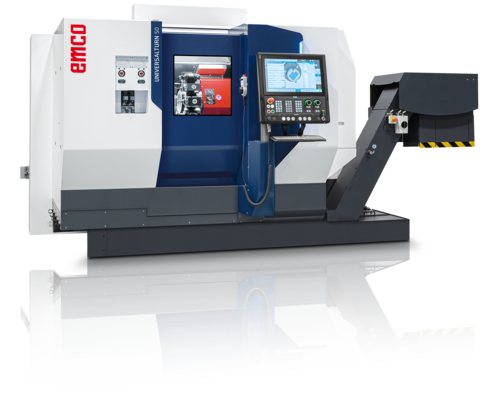

Universalturn 50

Swing diameter over bed 430 mm
Max. turning diameter M + MY (axial turret) 220 mm
Max. spindle speed 6200 rpm
Max. power M + MY 15/30 kW

EMCOTURN

CNC TURNING MACHINES

Modular CNC turning machines for economic machining of chuck, shaft and bar stock parts; bar sizes 25-95mm.

EMCOTURN E25

Max. bar stock diameter 25,4 mm
Max. chuck size 95 mm
Max. speed 6300 rpm
Drive main spindle 5.5 kW
Drive turret 1.2 kW

EMCOTURN E45

Max. bar stock diameter 45 (51) mm
Max. machining diameter 220 mm
Max. speed 6300 (5000) rpm
Driven main spindle 13 kW
Driven turret 4 kW

EMCOTURN E65

Max. bar stock diameter 65 (95) mm
Max. chuck size 200 (250) mm
Max. speed 5000 (3500) rpm
Max. drive main spindle 22 (23,7) kW
Max. drive turret 6,7 kW
Y axis+ / - 40 mm

CNC-LATHE S45

Max. Diameter Bar parts 45 mm / Chuck parts 220 mm
Speed Range0- 6300 U/min
Drive Performance 11 kW

CNC-LATHE S65

Diameter Bar Stock 65 mm / Chuck Parts 310 mm
Speed Range0- 4200 U/min
Drive Performance 18 kW

EMCOMAT

HIGH PRECISION LATHES WITH AND WITHOUT CYCLE CONTROL

Conventional lathes Center height: 140 to 200 mm (5.51 to 8.87”) Center distance: 650 to 1000 mm (25.59 to 39.37”)

EMCOMAT E-200 MC

Distance between centres 1000 mm
Max turning dia 400mm
Spindle bore Ø 50/53 mm
Max. speed 4000 rpm
Drive performance 7.5 / 10kW

EMCOMAT-14 D

Distance above centres 140 mm
Distance between centres 650 mm
Spindle bore Ø 40 mm
Max. speed 4000 rpm
Max. drive performance 7.5 kW

EMCOMAT-17 D

Distance above centres 170 mm
Distance between centres 700 mm
Spindle bore Ø 50 mm
Max. speed (17S) 2350 rpm
Max. speed (17D) 3000 rpm
Max. drive performance (17S) 3.2 kW
Max. drive performance (17D) 5.3 kW

EMCOMAT-20 D

Distance above centres 200 mm
Distance between centres 1000 mm
Spindle bore Ø 50 mm
Max. speed 3000 rpm
Max. drive performance 5.3 kW

VERTICAL TURN VT

CNC VERTICAL TURNING CENTERS

For the machining of chuck parts up to ø 400 mm

VERTICAL VT 160

Max. turning diameter1 60 mm
Max. chuck diameter1 60 mm
Max. spindle speed 7000 rpm
Drive power main spindle 21 kW
Drive power turret 6.7 kW

EMCO VERTICAL VT 260

Max. turning diameter 260 mm
Max. chuck diameter 260 mm
Max. spindle speed 5000 rpm
Drive power main spindle 29 kW
Drive power turret 8.5 kW

VERTICAL VT 400

Max. turning diameter 400 mm
Max. chuck diameter 400 mm
Max. spindle speed 4000 rpm
Drive power main spindle 36 kW
Drive power turret 8,5 kW

HYPERTURN

CNC TURN-MILL CENTERS

For complete machining of complex workpieces for parts up to 1000mm diameter and 6000mm between centres.

HYPERTURN 200 POWERMILL

Swing diameter 1050 mm
Max. Turning diameter 1000 mm
Max. Spindle speed 1800 rpm
max. power 84 kW

HYPERTURN 100 POWERMILL

Swing over bed 800 mm
Max. turning diameter 750 mm
Max. spindle speed 3500 // 2500 rpm
Max. drive power, main spindle 33 / 53 kW

HYPERTURN 65 POWERMILL HIGH PERFORMANCE

Max. bar stock diameter65 (76,2/95) mm
Max. turning diameter500 mm
Max. speed0 – 5000 (4000/3500) U/min
Drive power29 (37) kW

HYPERTURN 65 POWERMILL G2

Max. bar stock diameter65 (102) mm
Max. turning diameter500 mm
Max. speed5.000 (4.000) rpm
Drive power29 / 38 kW

HYPERTURN 65 POWERMILL G2

Max. bar stock diameter65 (102) mm
Max. turning diameter500 mm
Max. speed5.000 (4.000) rpm
Drive power29 / 38 kW

HYPERTURN 65 POWERMILL

Max. bar stock diameter 65 (76,2 / 95) mm
Chuck size 250 mm
Max. speed 5000 (4000 / 3500) rpm
Drive power Main-counter spindle 29 (37) / 29 kW
Automation with bar- or gantry-loader, unloading through the counter spindle

HYPERTURN 110

Max. bar stock diameter 110 mm
Chuck size 500 mm
Bed length 1700 mm/2300 mm
Max. speed 2500 rpm
Max. drive power 52 kW

HYPERTURN 95

Max. bar stock diameter: 95 mm
Chuck size 315 mm
Bed length 1700 mm/ 2300 mm
Max. speed 3500 rpm
Max. drive power 33 kW

HYPERTURN 65

Max. bar-stock diameter 65 (76,2 / 95) mm
Chuck size 250 mm
Max. speed 5.000 (4.000/3.500) rpm
Max. drive power 29 / 37 kW
Bar loaders

HYPERTURN 50

Max. bar stock diameter51 (65) mm
Chuck size160 mm
Max. spindle speed0-7000 (5000) rpm
Drive power15 (18) kW
Bar and swing loader

HYPERTURN 45

Max. bar stock diameter 45 (51) mm
Chuck size 160 mm
Max. spindle speed 7,000 rpm
Drive power 15 kW
Bar loader, swing loader or gantry loader

MAXXTURN

HIGH-PERFORMANCE CNC TURNING CENTERS

CNC high-perfomance turning centers for flexible machining of chuck, shaft and bar stock parts; size of workpieces up to 1000mm diameter and 6000mm length.

MAXXTURN 200

Max. bar stock diameter 165 x 1200 mm
Max. chuck size 400 / 500 / 630 mm
Max. speed range 1800 / 2500 rpm
Drive power main spindle 84 / 53 kW
Drive power turret 19,8 kW

MAXXTURN 110

Max. bar stock diameter 110 mm
Chuck size 315/400 (500) mm
Max. speed range 3500 / 2500 rpm
Drive power main spindle 33 / 42 kW
Drive power turret 10 kW

MAXXTURN 95

Max. bar stock diameter 95 mm
Chuck size 315 mm
Max. speed range 3500 (2500) rpm
Drive power main spindle 33 (42) kW
Drive power turret 8 kW

MAXXTURN 65-1000

Max. bar stock diameter 65 (76,2/95) mm
Chuck size 250 mm
Max. speed range 5000 (4000/3500) rpm
Drive power main spindle 29 (37) kW
Drive power turret 6.7 kW

emco-cnc-universal-drehzentrum-turning-center-maxxturn-mt65g2

MAXXTURN 65 G2

Max. bar stock diameter 65 (75/95) mm
Chuck size 250 mm
Max. speed range 5000 U/min
Drive power main spindle 29 (29/37) kW
Drive power turret 6,7 kW

MAXXTURN 45 G2

Max. bar stock diameter 45 (51) mm
Chuck size 160 mm
Max. speed range 7000 prm
Drive power main spindle 15 kW
Drive power turret 4 kW

MAXXTURN 25

Max. bar stock diameter 25 mm
Chuck size 95 mm
Max. speed 8000 rpm
Drive power main spindle 6.5 kW
Drive power tool turret 1.2 kW
